MODEL EF - ELECTROMAGNETIC VIBRATING FEEDERS

QUICK FACTS Quiet Operating Variable Speed Control 5 Standard Models Supply Hoppers Optional 115/1/60 Power Input Standard

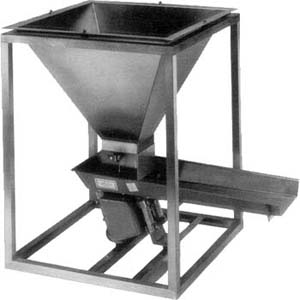

Model HF-E-830-7-1/2-(3) vibrating hopper feeder with 8" × 30" flat trough and 3 cubic foot capacity hopper. Unit is manufactured to F.D.A. food grade standards. Entire trough frame and hopper supports are fabricated from 304 polished stainless.

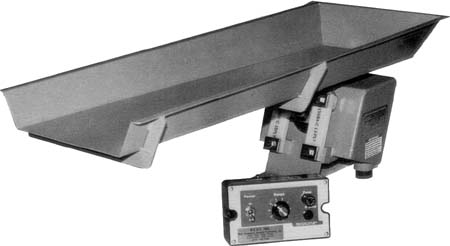

MODEL EF-830-7-1/2 electro-magnetic vibrating feeder shown with 8" x 30" flat trough and variable speed controller.

Model EF electromagnetic vibrating feeders are offered in five standard sizes with capacities from 1,250 lbs / hour to 7.5 tons / hour in trough sizes from 1-1/2" wide × 12" long to 8" wide × 30" wide as standard.

Feeder capacity is based on sand at 100 lbs. per cubic foot. Troughs can be furnished in vee, tubular and wide flat pan designs in mild steel and 304 stainless.

The electromagnetic design offers durable and reliable service. Drives are encased in dust-tight housings. Controls include a simple rheostat type variable speed controller. Noise conforms to OSHA standards.

Power input is 115/1/60 as standard. Two-speed scale-controlled units are available.

Typical applications include feeding to packaging, batching, mixing, drying and similar applications. Hot and cold materials are easily handled.
