SPECIAL APPLICATION VIBRATING FEEDERS

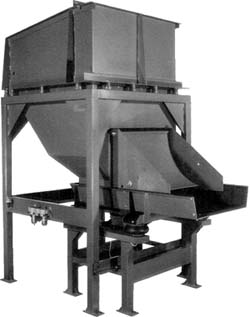

air operated hopper vibrating feeder

MODEL HF-2945-400-31 Air Operated Hopper Vibrating Feeder with 29"×45" long trough and a 31 cubic foot hopper. Designed to accept corrugated drop bottom bins typically used in machine shops and automotive parts plants. Trough is lined for noise abatement.


hopper vibrating feeder systems

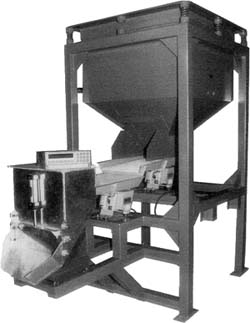

MODEL HF-1224/1424-7-25 net weigher, hopper vibrating feeder system with batch hopper mounted on scale. Designed to net weigh high alloy nuggets in an ingot inoculation system. Two feeder system provides accurate final batch weight.


Vibrating Hopper Feeder System

Hopper vibrating feeder system with twin feeders. High amplitude primary feeder designed to eliminate bridging, secondary unit designed to level and meter final flow.


low profile vibrating feeders

MODEL AF-1230-350 low profile feeder with 12" wide × 30" long trough. Designed to handle light bulb bases in an inspection area. Trough is neoprene lined.


scrap metal reclaiming feeders

Heavy enough for the toughest service, MODEL TMF-66204-22000-8 features a 65" wide × 17' long trough. The unit has a 3/4" thick trough with 1" liners and weighs nearly 16,000 lbs. The vibrating feeder was installed in a car shredding operation.


vibrating feeders for scrap metal companies

MODEL TMF-7288-7710-8-(2) heavy duty high tonnage twin motor feeder with 72" wide × 88" long trough. Designed for the scrap metal reclaiming industry.



tubular vibrating feeders

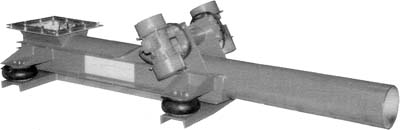

MODEL TMF-T-684-1100-6-(2)-A twin motor feeder with 6" dia. × 7 ft. long tubular trough and top mounted motor vibrators.


air operated vibrating conveyors and feeders

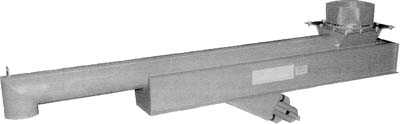

MODEL AF-T-8-120-400 air operated vibrating conveyor with 8" dia. × 10 ft. long tubular trough.
